Corn husk not only contains the polysaccharides such as starch and cellulose, but also has rich soluble protein and its degradation products, such as peptide and amino acid. In addition it contains lactic acid, phytic acid calcium and magnesium salts and soluble sugar, which have high nutritional value. The material can be used to herbivore (such as cattle, sheep, and fish, etc.) and single stomach animals such as pigs and chickens.

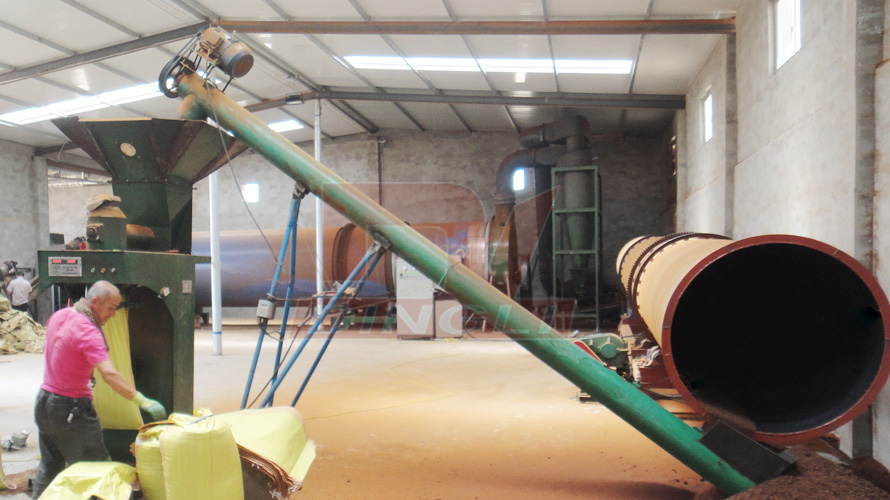

Corn steep liquid and corn husk is uniformly mixed in the mixture and conveyed into feed machine when the moisture content of wet corn husk reaches 35% to 40%. Then the feed machine delivers the wet corn husk into drying drum. Inside the drum are uniformly distributed flights and sets of agitators, which lift the wet corn husk ups and downs. The wet materials get fully contacted with hot air and realize the process of mass transfer and heat transfer.
Compared with single drum dryer, it reduces floor space by 50%, decreases civil engineering investments by 50%.
Dryer internal structure using a variety of high-lift board combination mode, effectively regulate the drying process and heat distribution, high heat utilization, exhaust gas discharge temperature is low.
Rapid drying moisture reducing from 65-75% to 14-18% in one-time. Pasture temperature is always lower than 50 ℃, dried grass completely retained the nutrients of fresh pasture, bright color, smell fragrance.
The application of our drying equipment is wide and the uniformity of dried products is good.
|Evaporation Capacity (t/h)||0.45||0.85||1.53||1.95||2.13||2.62||3.09||3.57|
|Initial Moisture (%)||40±5|
|Final Moisture (%)||15% (Adjustable)|
|Drying Temperature (℃)||280±30|
|Total Power (kw)||34||45||78||90||105||125||140||155|
|Total Weight (kg)||22000||28000||40000||45000||50000||60000||68000||76000|
|Plant Area (m2)||5m*15m||6m*22m||8m*16m||8m*18m||8m*20m||10m*20m||10m*24m||10m*24m|
Capacity : 3ton/h
Floor area: 10×40m
Capacity : 1.1 ton/h
Floor area: 10×40m
Capacity : 1 ton/h
Floor area: 10×30m
