Bean dregs, the by-product during producing soy milk or tofu, is a kind of material with big water and oil combining performance. After being processed, it has the following advantages: fresh bean dregs’s water content is about 90%, its nutritional ingredient is higher than many inferior dregs; the crude protein content is high, especially in hot summer and high temperature, it is easily rotted and mildewed. Dry bean dregs’s crude protein content is three times higher than that of the unhulled rice. It is suitable for nutrition feed for pig, chicken, duck, etc.

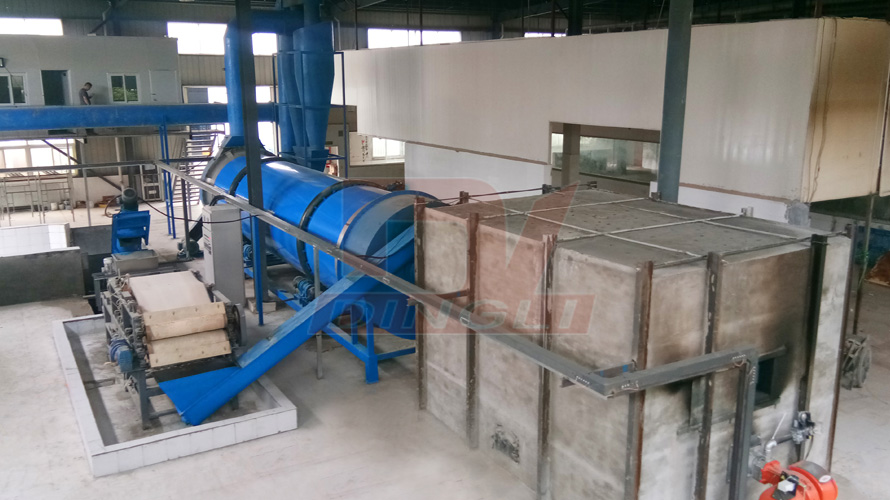

Bean dregs dryer is mainly consisted of the heat source(hot blast stove or gas producer furnace), material feeder(beater), rotary drying roller, discharger, induced draft fan, driving device, unloader and power distribution cabinet. After certain degree of dehydration and scattering, wet bean dregs enters into the drying roller through material feeder. Under the stirring of the lifting plates and shoveling plates that distribute evenly inside the roller, the bean dregs scatters evenly and contacts with hot air sufficiently in drying area. This speeds up the drying heat transfer and mass transfer. Wet air is pumped by air-inducing device, which avoids material from being wet again.
Bean dregs dryer production line adopts special inner structure, which makes sure the bean dregs drying effect. It introduces novel and unique sealing device, and is matched with thermal insulation system of excellent effect, thus decreasing the coal consumption of the whole drying system. The integrated system is of good sealing performance, and is equipped with perfect dust removal device, no dust spillover, good operating environment.
It introduces novel and unique sealing device, and is matched with thermal insulation system of excellent effect, thus decreasing the coal consumption of the whole drying system.
Dryer internal structure using a variety of high-lift board combination mode, effectively regulate the drying process and heat distribution, high heat utilization, exhaust gas discharge temperature is low.
Rapid drying moisture reducing from 65-75% to 14-18% in one-time. Pasture temperature is always lower than 50 ℃, dried grass completely retained the nutrients of fresh pasture, bright color, smell fragrance.
Supporting a variety of new energy-saving clean hot air blast stove, fuel can be diesel, gas, coal, wood, wood chips, straw etc. And efficient energy, heating controllable, simple operation, energy consumption decreased by as much as 30%, power consumption reduced by 20%, the operating cost is lower.
|Evaporation Capacity (t/h)||0.45||0.85||1.53||1.95||2.13||2.62||3.09||3.57|
|Initial Moisture (%)||40±5|
|Final Moisture (%)||15% (Adjustable)|
|Drying Temperature (℃)||280±30|
|Total Power (kw)||34||45||78||90||105||125||140||155|
|Total Weight (kg)||22000||28000||40000||45000||50000||60000||68000||76000|
|Plant Area (m2)||5m*15m||6m*22m||8m*16m||8m*18m||8m*20m||10m*20m||10m*24m||10m*24m|
Capacity : 3ton/h
Floor area: 10×40m
Capacity : 1.1 ton/h
Floor area: 10×40m
Capacity : 1 ton/h
Floor area: 10×30m
